Benchtype Fume Absorber TAZ 19
Safe working with preparations and solvents

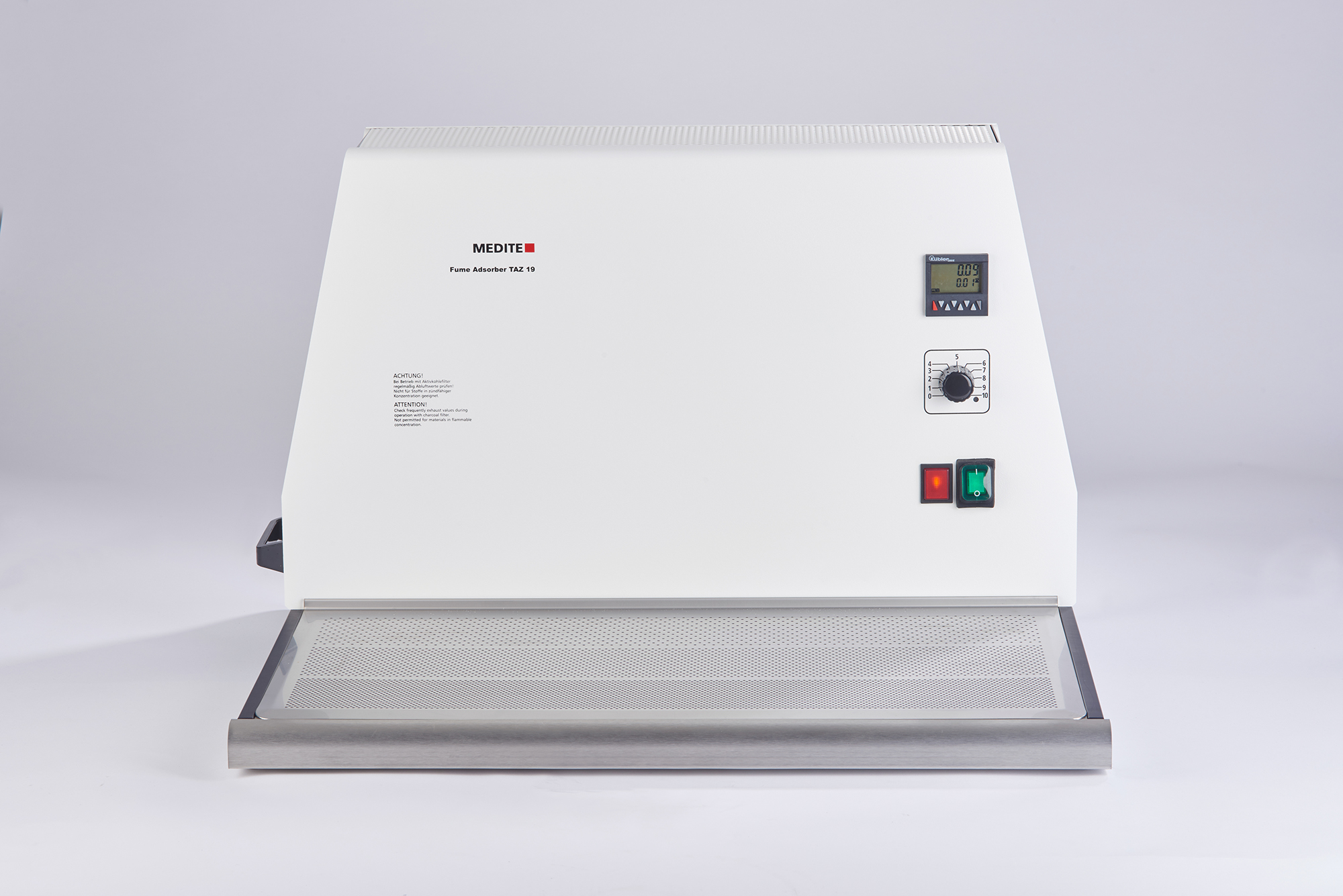

The TAZ 19 is a mobile safety workstation with underfloor exhaust ventilation for use as a tabletop device. It is perfect for use for manual coverslipping of microscope slides, for histological and pathological preparations, or for filling and decanting solvents.

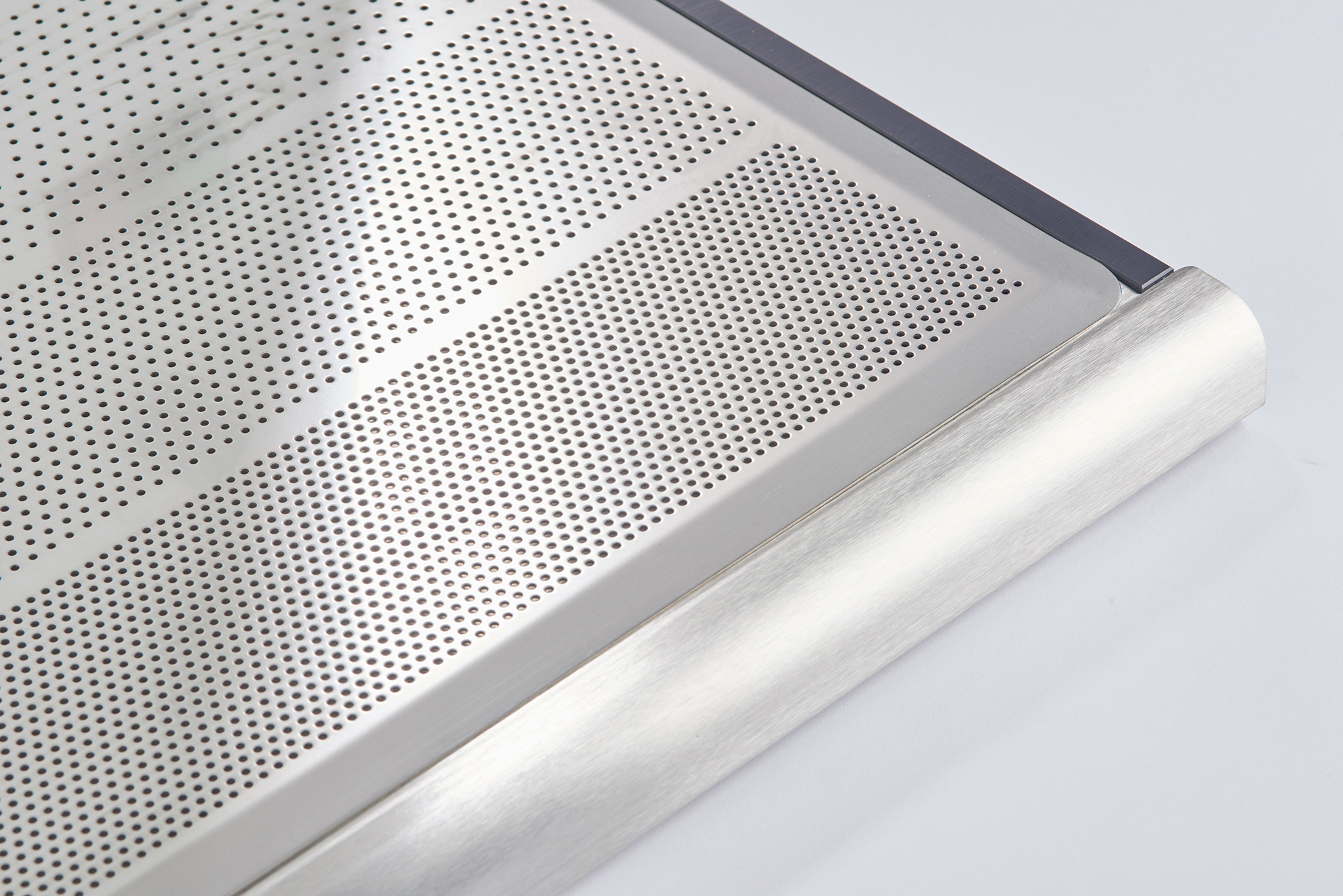

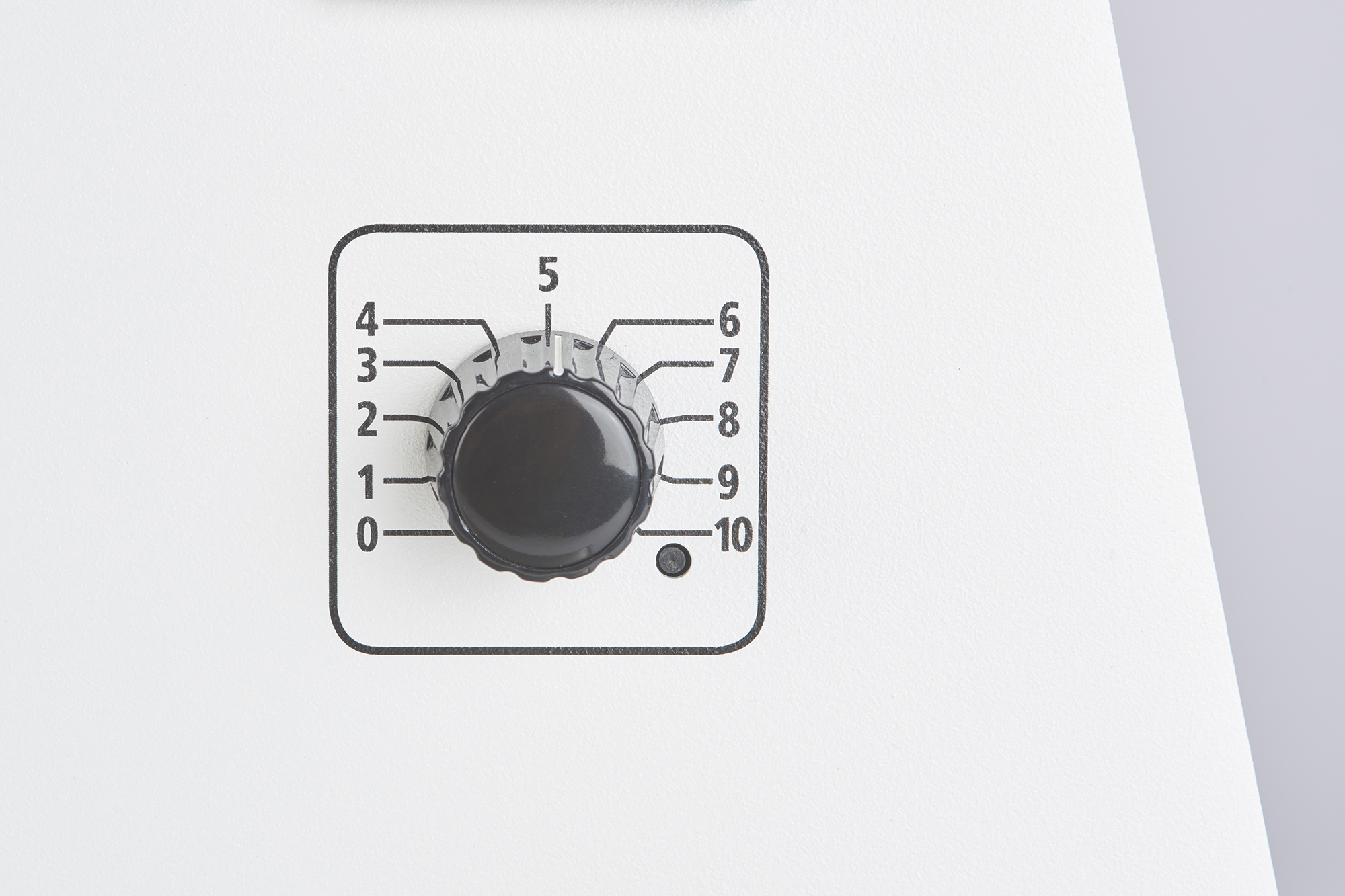

The continuously variable adjustment of the exhaust ventilation power enables an optimal adaption to the respective requirement. Due to the different perforation of the work area, the exhaust ventilation is about equal all over the work surface.
Different models

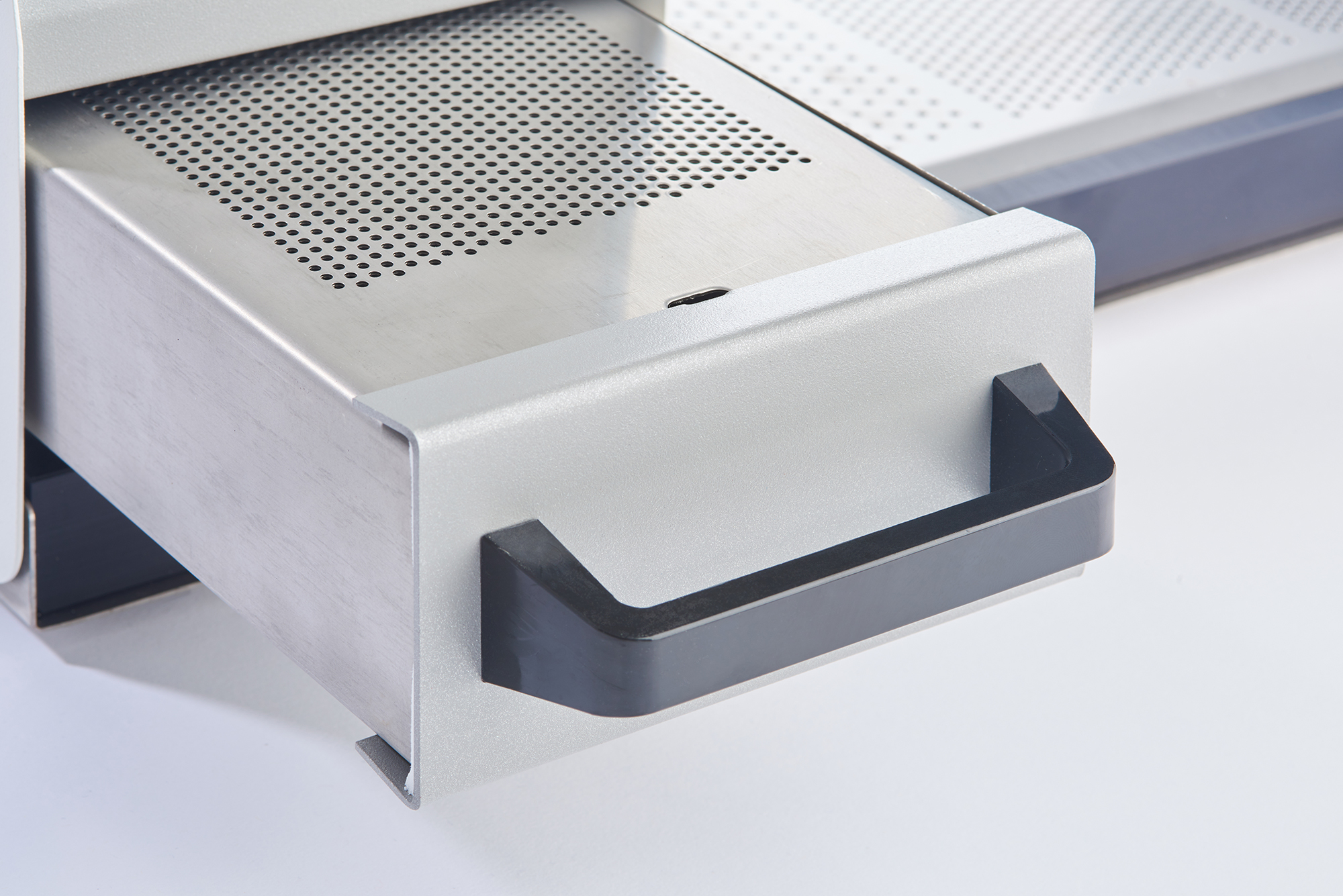

Underfloor exhaust ventilation is ideal because many reagent vapors are heavier than air. The device can be used independently with an activated carbon filter or with a connection to an existing ventilation air system. In order to even better prevent vapors emitting from the work area, an optionally availabel acrylic glass hood can be added to the TAZ 19. Necessary filter changes are indicated by an optical signal.
The TAZ 19 is available in three different versions, differentiated by their respective exhaust ventilation and filter type.
- Filter: filter casing with universal activated carbon
- Dimensions Working Surface (W/D/H): 590 x 310 x 40 mm
- Dimensions Overall (W/D/H): 620 x 485 x 405 mm
- Weight: ca. 20 kg
- Power Supply:
- 230 V / 50 ‒ 60 Hz / 160 VA
- 115 V / 50 ‒ 60 Hz / 160 VA
- Filter: filter casing with activated carbon for formalin fumes
- Dimensions Working Surface (W/D/H): 590 x 310 x 40 mm
- Dimensions overall (W/D/H): 620 x 485 x 405 mm
- Weight: ca. 20 kg
- Power Supply:
- 230 V / 50 ‒ 60 Hz / 160 VA
- 115 V / 50 ‒ 60 Hz / 160 VA
- Filter: connection for external exhaust
- Dimensions Working Surface (W/D/H): 590 x 310 x 40 mm
- Dimensions overall (W/D/H): 620 x 485 x 405 mm
- Weight: ca. 18 kg
- Power Supply:
- 230 V / 50 ‒ 60 Hz / 160 VA
- 115 V / 50 ‒ 60 Hz / 160 VA
