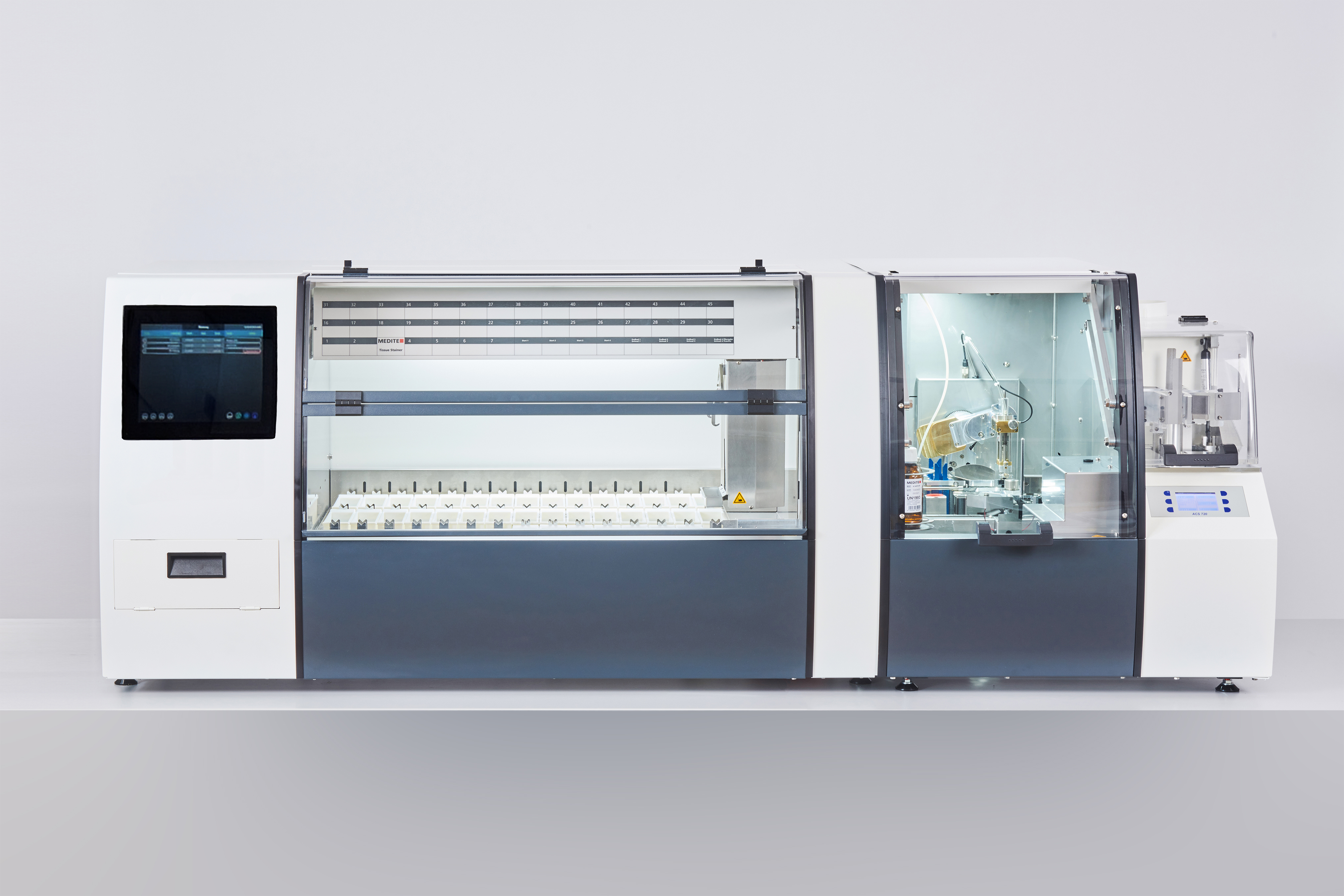

Stainer Glass Coverslipper Combination TCA 44-720

Slide Staining and Coverslipping in one device

The Multi-Stainer Glass Coverslipper Combination TCA 44-720 offers complete automation of the staining process up to the finished slide. The device combines the multi-stainer TST 44 C with the automatic glass coverslipping machine ACS 720. The resulting device is characterized by high flexibility and throughput as well as excellent quality and process reliability.

With the modular structure, it is no longer neccessary to manually transfer the slide basket to the glass coverslipper. This is time-saving for the user, and also optimizes the entire procedure of slide processing. The ACS 720 can cover up to 400 slides per hour.

The ACS 720 is available in combination with the following TST 44 models:

Getting the best possible result quickly and reliably

The ACS 720 automatic glass coverslipper works reliably and quickly at a consistently high level of quality. The stained slide is transported from the basket to the mounting medium by use of a turntable solution, developed by MEDITE, where it is applied automatically. In the next step, the cover slip is attached. Then the slide is returned to the same slide basket. To prevent the dispenser needle from drying out, it automatically returns to a xylene reservoir when the process is finished.

By automating the coverslipping process, time and effort needed can be significantly reduced.

When working with the ACS 720, it is recommended to use MEDITE mounting media, special coverglass for coverslipping machines, and microscope slides with 45° beveled corners. Damaged coverglass is recognized by the device. The processed tissue samples are covered smoothly and without bubbles for a reliable diagnosis and a long archiving period.

Technical Data

  • Coverslipping Time: 6 ‒ 11 seconds per slide
  • Mounting Medium Dispensing Volume: 30 ‒ 150 μl
  • Mounting Medium Container bottle of 500 ml
  • Microscope Slide Size: 26 x 76 mm with 45° beveled corners
  • Microscope Slide Thickness: 0.9 ‒ 1.2 mm
  • Microscope Slide Holder Archive: 4 x 30 slide basket
  • Coverglass Size:
    • 24 x 50 mm
    • 24 x 55 mm
    • 24 x 60 mm
  • Coverglass Thickness: 0.13 ‒ 0.17 mm
  • Coverglass Container Capacity: ca. 300 pcs.
  • Dimensions (W/D/H): 630 x 670 x 640 mm
  • Weight: ca. 65 kg
  • Power Supply: 100‒240 V / 50 ‒ 60 Hz / 90 VA
